Digital Engine DPF Filter Cleaning Machine With CE
- Model Number: KingKar DPF 5.0
- Energy: Electricity
- Working time(mins): 60
- Work pressure(KG): 8
- Dimension(L*W*H): 1725*1680*830
- Voltage(AC): 380V Three-phase Five-wire system
- Maximum Power(KW): 15
- Certificate: ISO9000 1, CE
- Warranty: 2 years
- Country of origin: China
- Brand: KingKar
Model: DPF Cleaning Machine 5.0
Brand: KingKar
Product Description
KingKar DPF 5.0 Cleaning Machine with the most advanced and unique technologies to clean all size and shapes of DPFs, DOCs, SCRs. Only need 60 mins to clean 1 DPF. It uses warm water flushing with the cleaner agent and high-pressure air purging to work alternately. Three treatments together, ensure 100% cleaning effect. It won’t cause the secondary blockage. It’s impeccable operation and usefulness.
KingKar DPF cleaning machine with high density of 10-micron filter density for the waste water filtration system.It can filter very small particles and ashes, so it will not cause secondary blockage of the machine, and the DPF cleaning effect is more thorough. Besides, the water is recycled throughout the process as there is a purification system in the Kingkar DPF cleaning machine. After the first DPF is cleaned, it only takes 10 minutes for the water in it to become clean again, and then you can clean the second DPF without changing the water. Save your cost and time.
| Model | Kingkar DPF 5.0 |
| Voltage(AC) | Three phase five wire system |
| Rated Capacity(KW) | ≤14.5 |
| Gas Tank Capacity(L) | 25 |
| Working Gas Pressure(Mpa) | ≤6 |
| Liquid Temperature(°C) | 55-70 |
| Working Temperature(°C) | 0-40 |
| Outline Dimensions-L*W*H(mm) | 1680*830*1725 |
| Net Weight(KG) | 470 |
To put it simply, water flushing and high pressure purging work alternately. The high-pressure air in the high-pressure air tank is instantly released. Using the top water of the air, the compressed water is generated to generate potential energy, and the blockage inside the honeycomb carrier is pushed out instantly.
- After being rinsed with circulating water, the bottom of the DPF and the honeycomb net are filled with water.
- The high-pressure gas in the high-pressure air storage tank is instantly released, and the water pressurized by the high-pressure air will instantly push out the hydrogen sulfate and ammonium bicarbonate composite blockage adsorbed inside the honeycomb net.
This process will cycle 3 times (can be set according to the clogging degree of the DPF). This will remove any blockages from the filter. It can effectively achieve 100% cleaning.
Using water flushing and high-pressure air purging process alternately. So for the serious blockage of DOC/ DPF/ SCR of a diesel vehicle, it can be thoroughly cleaned and dredged.
8KG air pressure—the high-pressure air in the air tank is released instantly, and the DPF blockage is blown out by the compressed air to the working compartment.
Multifunctional work tray. All sizes of DPF can be cleaned. Easy to operate and safety, saving time and labor for an engineer.
Reasonable layout, clear at a glance, reducing after-sales work trouble.
5-micron filter, It can filt very small particles and ash, so will not cause a second blockage and a more thorough cleaning effect.
DPF cleaner agent, Obtained the certification of the Swiss SGS lnternational Authoritative Certification Agency, it can reach double cleaning double benefits.

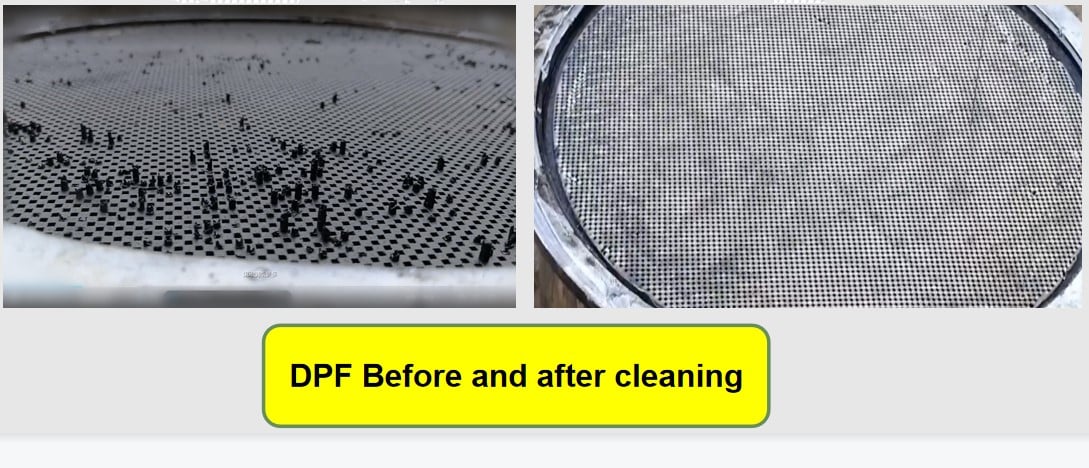

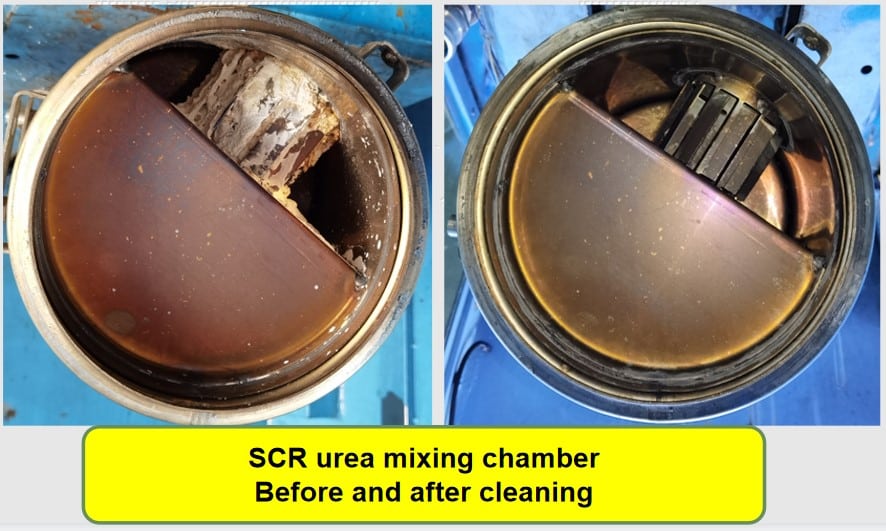

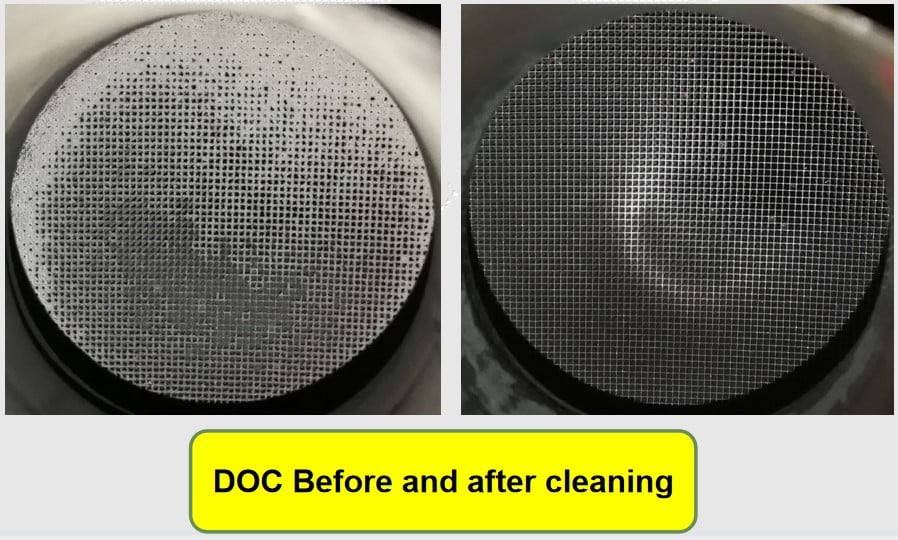

Comparison of cleaning effects
